SMA905 CONNECTOR

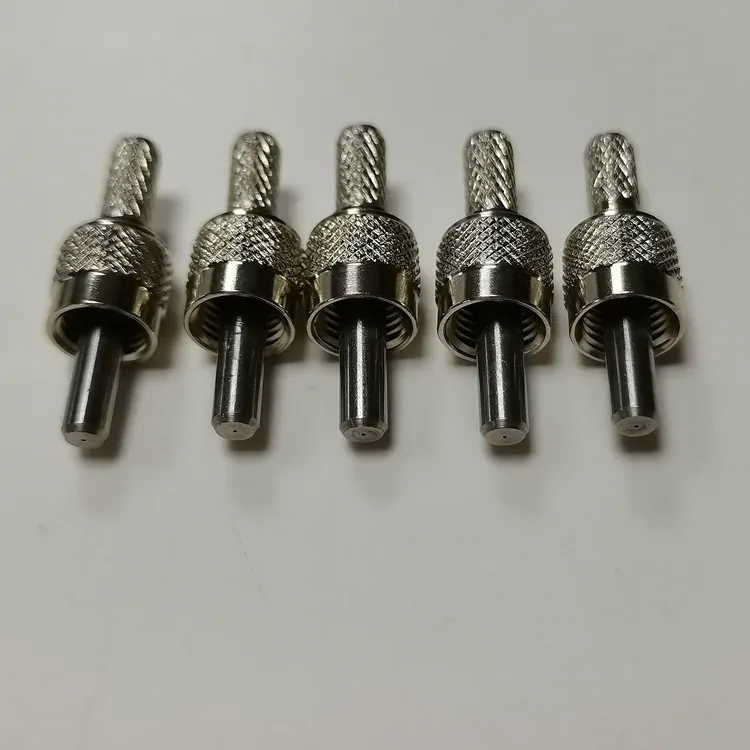

SMA905 230 um High-Power Fiber Optic Connector
SMA905 threaded SMA905 high-power fiber connector with stainless ferrule for large-core POF, HCS and silica fibers in laser, medical and industrial optics.

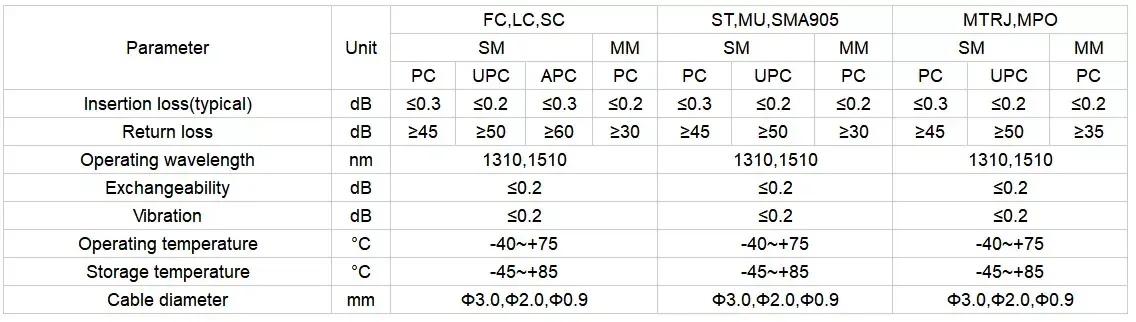

Specifications
- Type
- fiber optic connector, Terminal Connectors
- Certifaction
- ISO9001,ROHS,CE
- connector Type
- SMA905
- Weight
- 0.02KG
- Ferrule material
- Ceramic
- Hole diameter
- HCS200/230um
SMA905 230 um High-Power Fiber Optic Connector
SMA905 is a JINSHANG TECH FSMA/SMA905 fiber connector with a precision ferrule for large-core POF, HCS and silica fibers.
JINSHANG TECH supplies the SMA905 as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Fiber diameter: HCS200/230um
- Connector/interface: SMA905
- Certified to ISO9001,ROHS,CE

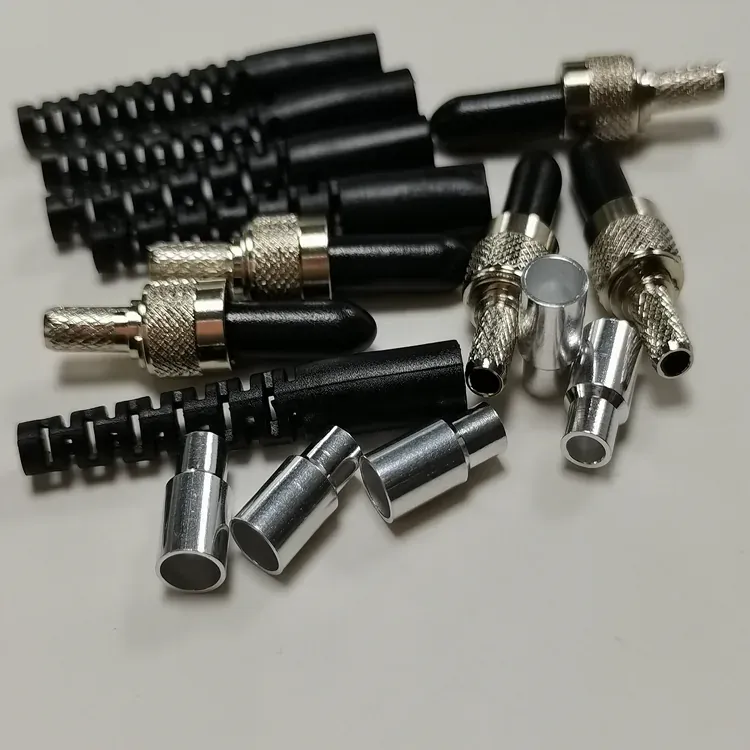

- Available as connector, pigtail, probe and in-line assembly
- Industry-standard interface for spectroscopy, medical and industrial optics
- High-temperature and chemically resistant stainless body
- Stainless-steel ferrule suited to high optical power and laser delivery
- Accepts a wide range of fiber diameters (e.g. 230–2000 um) with matched ferrules
Typical Applications
The SMA905 is commonly used for high-power laser light delivery and medical/dental fibers, spectroscopy and sensing probes, and industrial large-core POF/HCS/quartz fiber termination. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: SMA905 vs SMA906? A: SMA905 uses a straight ferrule tip and is the standard for large-core optical fibers; SMA906 has a stepped tip for different fiber handling.
Q: How does it lock? A: It uses a threaded SMA coupling nut rather than a push-pull latch, which resists loosening under vibration.
Q: Which fiber diameters fit? A: SMA905 is produced for a broad range of core diameters; select the ferrule matching your fiber (common sizes from roughly 230 um to 2000 um are listed for the model).
Q: What is SMA905 used for? A: SMA905 is a threaded, high-power connector widely used for large-core and laser-delivery fibers in medical, spectroscopy and industrial systems where secure coupling matters.
