PCF CABLE

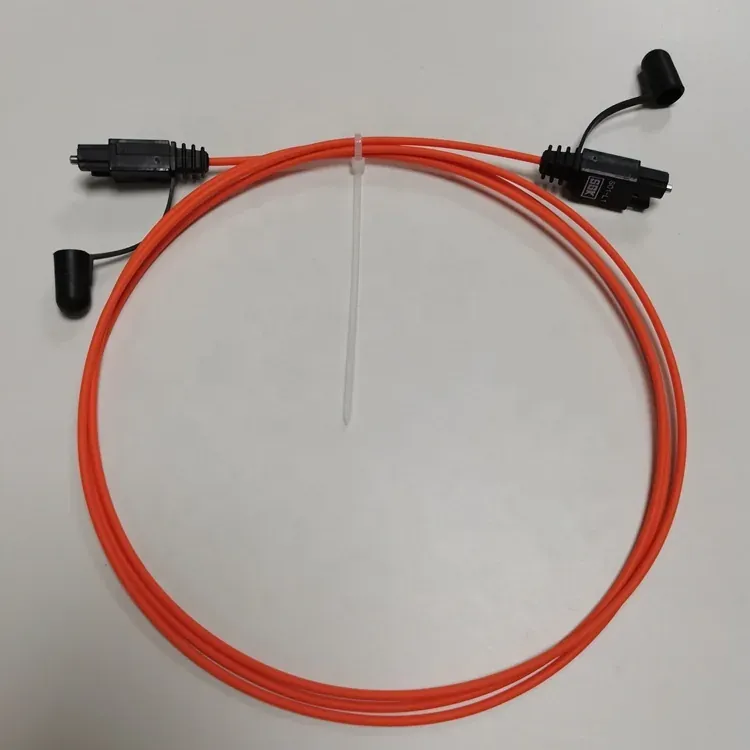

SGK-SO1-L1-220 200/230 HCS Fiber Jumper Harness
SGK-SO1-L1-220 200/230 um hard-clad silica (HCS) fiber jumper with factory connectors for high-bandwidth, EMI-immune servo and CNC optical links.
Specifications
- Type
- fiber optic connector
- Application
- Mitsubishi PLC Servo System,Hitachi drilling machine
- Fiber type
- fiber optic connector
- Certification
- ISO9001,RoHS
- Specification
- costomize
- Operating temperature
- -40~75Degree
- IP rating
- IP68
- Color
- Orange
SGK-SO1-L1-220 200/230 HCS Fiber Jumper Harness
The SGK-SO1-L1-220 HPCF jumper from JINSHANG TECH combines glass-core bandwidth with tough, easy-to-handle cladding in a factory-terminated harness.
Because the optical path is non-conductive, the SGK-SO1-L1-220 provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Certified to ISO9001,RoHS
- Housing/jacket color: Orange
- Operating temperature range: -40~75Degree
- IP68 ingress protection for damp or wash-down environments
- Available in standard and custom lengths

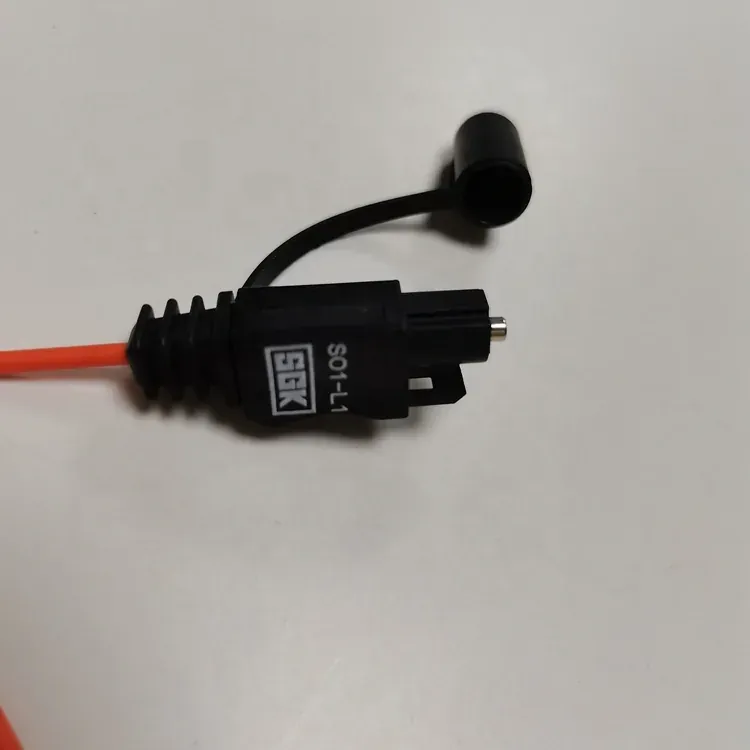

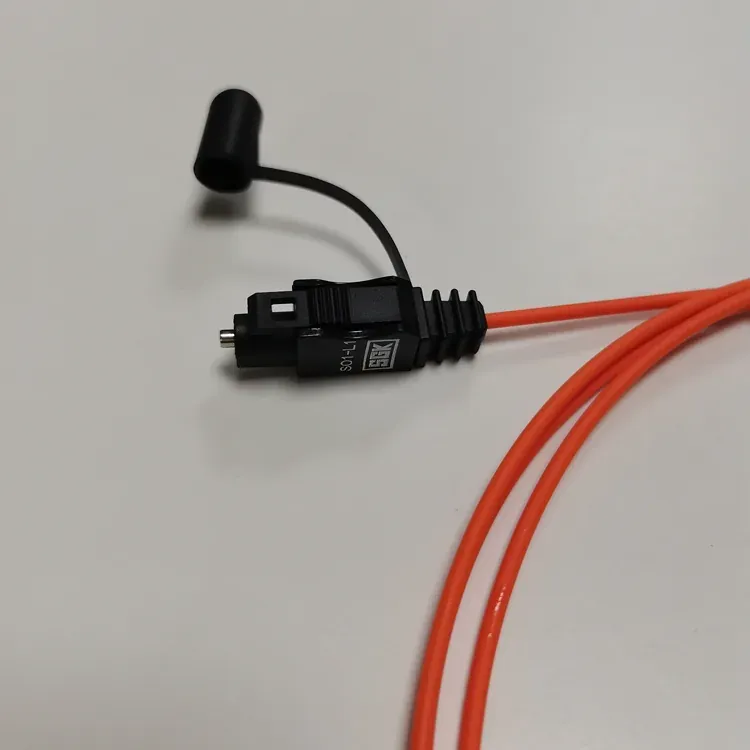

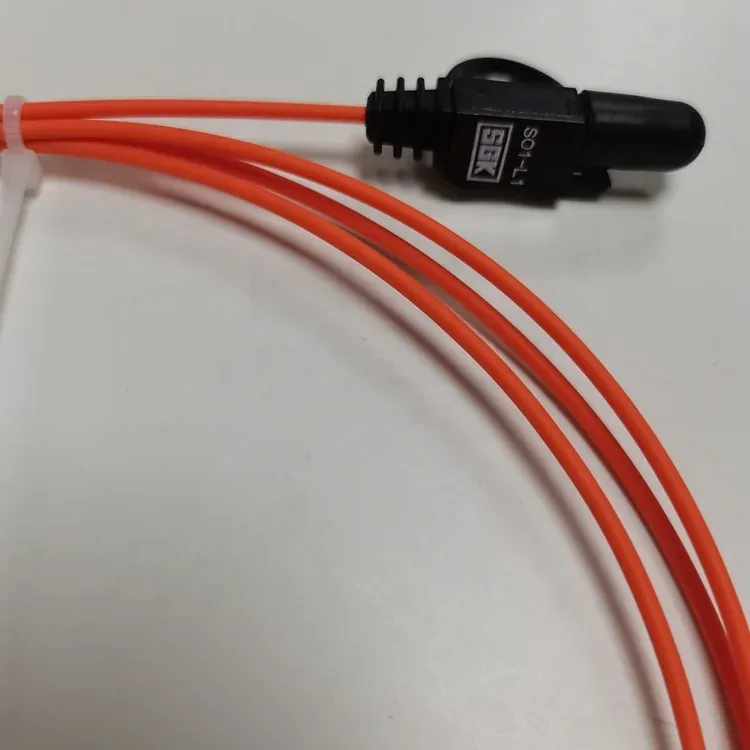

- Factory-terminated HCS connectors (F07/JIS where specified)
Typical Applications
The SGK-SO1-L1-220 is commonly used for Mitsubishi/Sumitomo servo and CNC optical networks. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Can length be customized? A: Standard lengths are stocked and custom lengths can be produced to the routing requirement.
Q: What is 200/230 um HCS fiber? A: It is a hard-clad silica fiber with a 200 um glass core and 230 um cladding, offering higher bandwidth and reach than 1 mm POF while remaining relatively easy to terminate.
Q: What connectors does it use? A: These jumpers typically use JIS F07/HPCF connectors (e.g. with Sumitomo CS-DL72 fiber); the exact interface is listed for the model.
Q: Is it compatible with Mitsubishi/Sumitomo systems? A: The listed assemblies are built around the corresponding HCS fiber and connector standards used in those systems; verify the part number against the equipment.
