TOCP201QK specification hcs fiber jumper

PCF CABLE

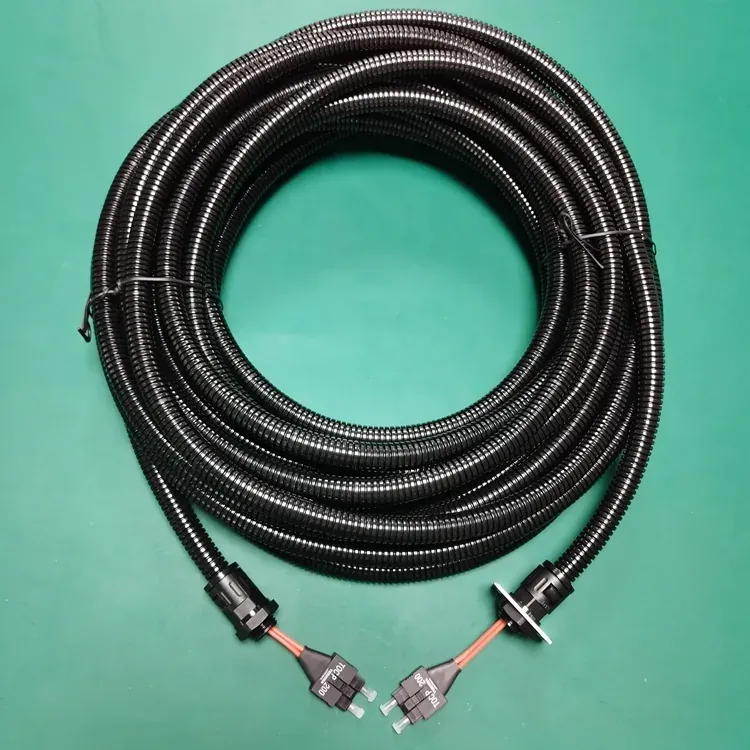

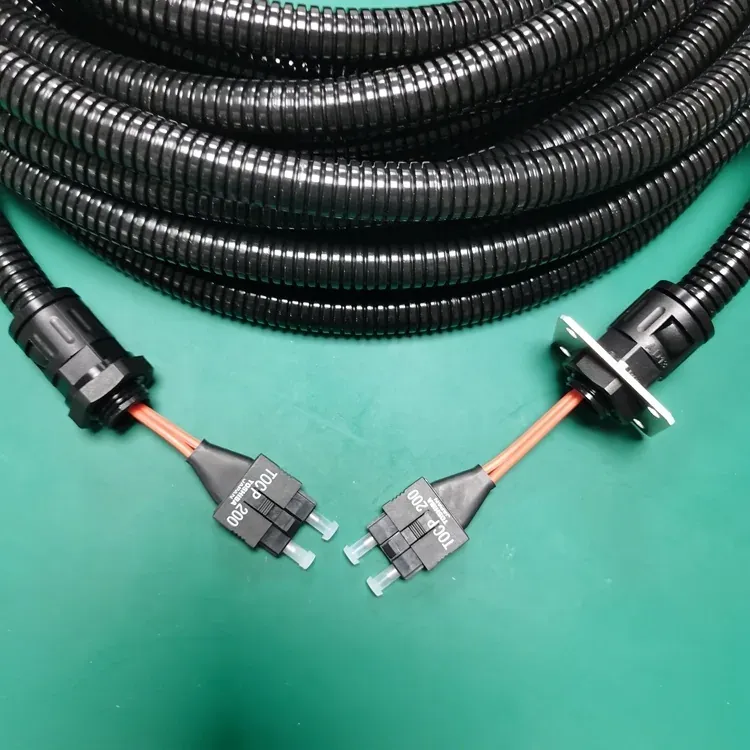

TOCP201QK 230 um 200/230 HCS Fiber Jumper Harness

TOCP201QK 200/230 um hard-clad silica (HCS) fiber jumper with factory connectors for high-bandwidth, EMI-immune servo and CNC optical links.

Specifications

Type: Fiber optic patch cord
Application: Mitsubishi PLC Servo System,Hitachi drilling machine
Fiber type: Patch cord
Certification: ISO9001,RoHS
Specification: costomize
Outer Jacket Material: 2.2mm
Operating temperature: -40~75Degree
IP rating: IP68
Color: Orange

TOCP201QK 230 um 200/230 HCS Fiber Jumper Harness

TOCP201QK is a JINSHANG TECH 200/230 um hard-clad fiber jumper (e.g. CS-DL72/F07) for industrial optical control.

Because the optical path is non-conductive, the TOCP201QK provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.

Key Characteristics

Housing/jacket color: Orange

Operating temperature range: -40~75Degree

IP68 ingress protection for damp or wash-down environments

Certified to ISO9001,RoHS

Outer jacket: 2.2mm

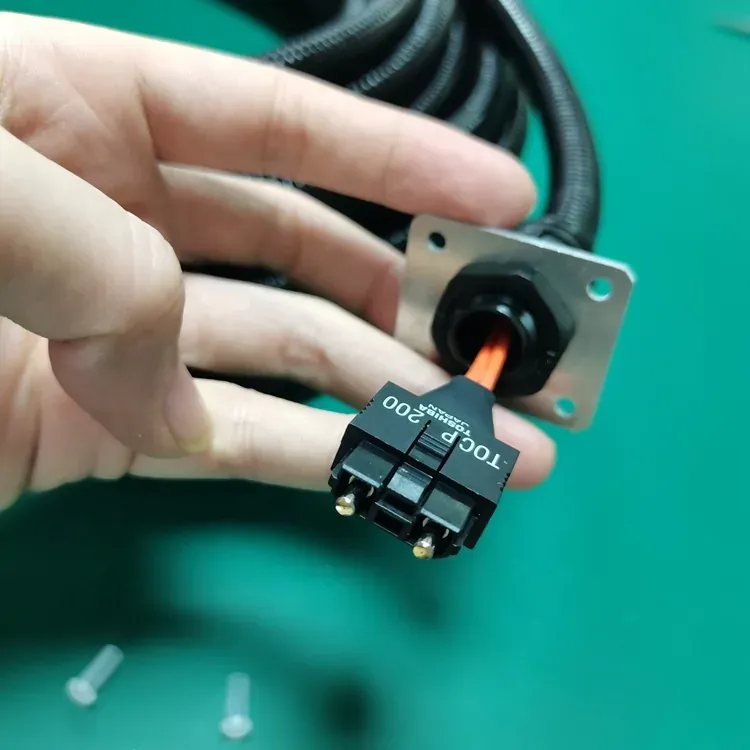

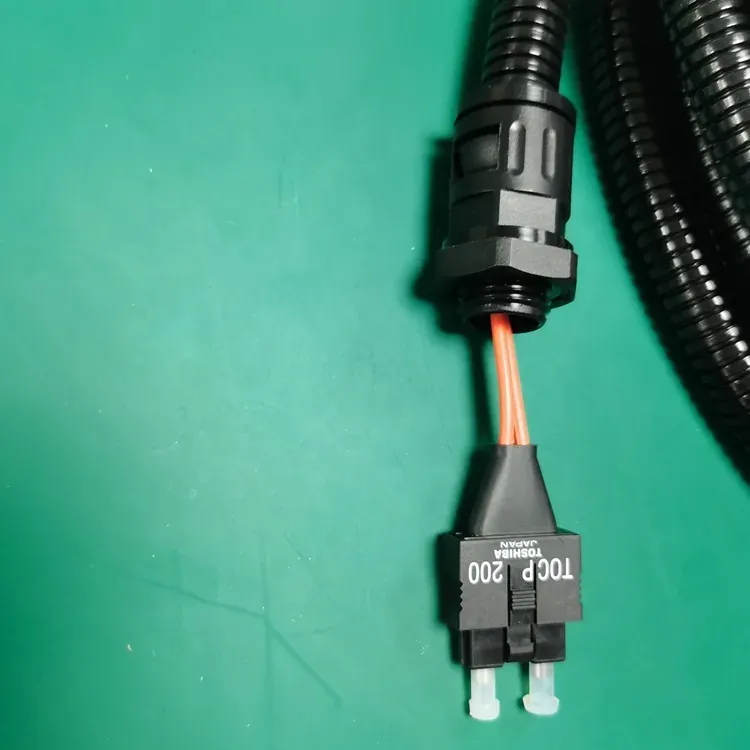

Factory-terminated HCS connectors (F07/JIS where specified)

Available in standard and custom lengths

Typical Applications

The TOCP201QK is commonly used for Mitsubishi/Sumitomo servo and CNC optical networks, industrial automation links needing higher bandwidth than POF, and HCS jumpers between drives, amplifiers and controllers. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.

Frequently Asked Questions

Q: Is it compatible with Mitsubishi/Sumitomo systems? A: The listed assemblies are built around the corresponding HCS fiber and connector standards used in those systems; verify the part number against the equipment.

Q: Can length be customized? A: Standard lengths are stocked and custom lengths can be produced to the routing requirement.

Q: What connectors does it use? A: These jumpers typically use JIS F07/HPCF connectors (e.g. with Sumitomo CS-DL72 fiber); the exact interface is listed for the model.

Q: HCS vs POF? A: HCS supports longer, higher-speed links and wider temperatures; POF is lower cost and simpler for very short connections. Choose HCS where the system specifies it.
