PCF CABLE

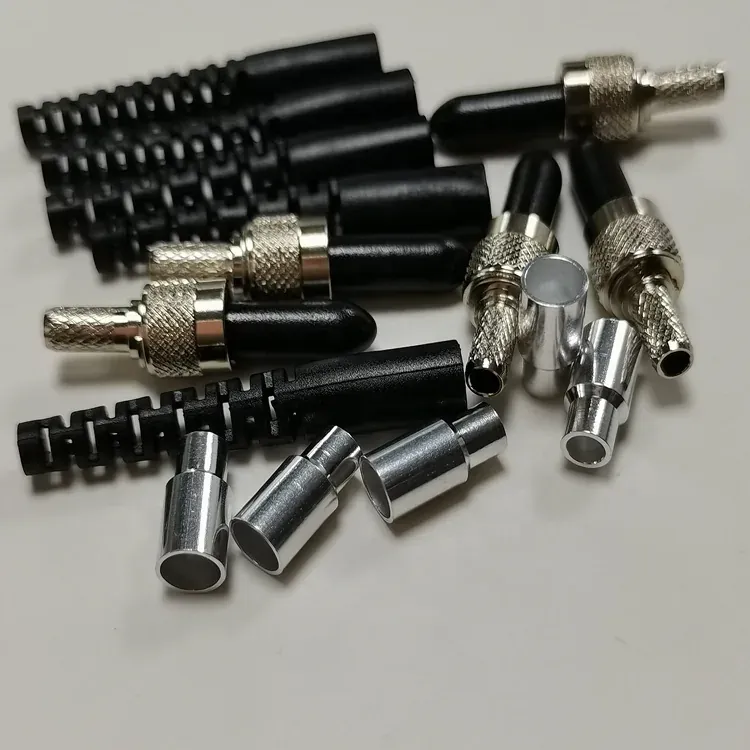

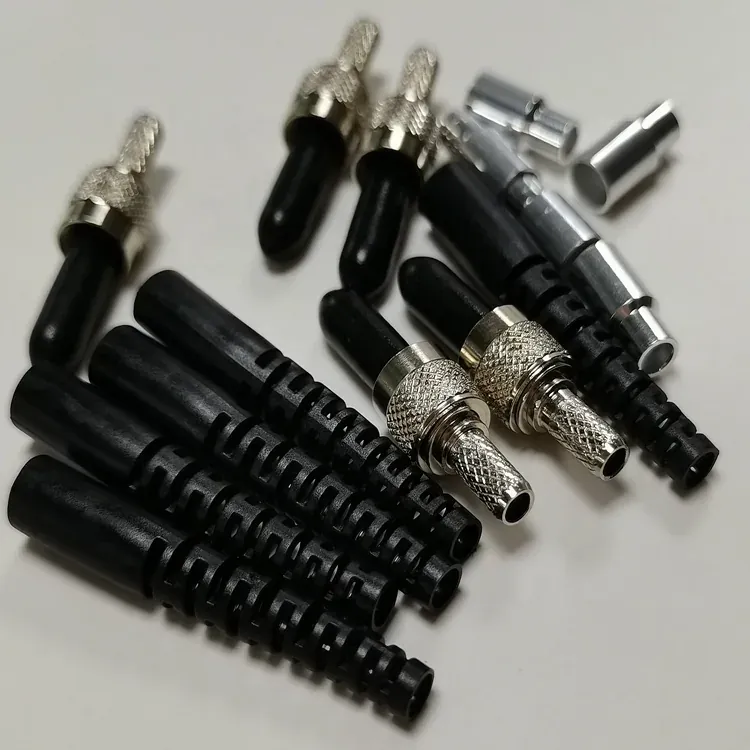

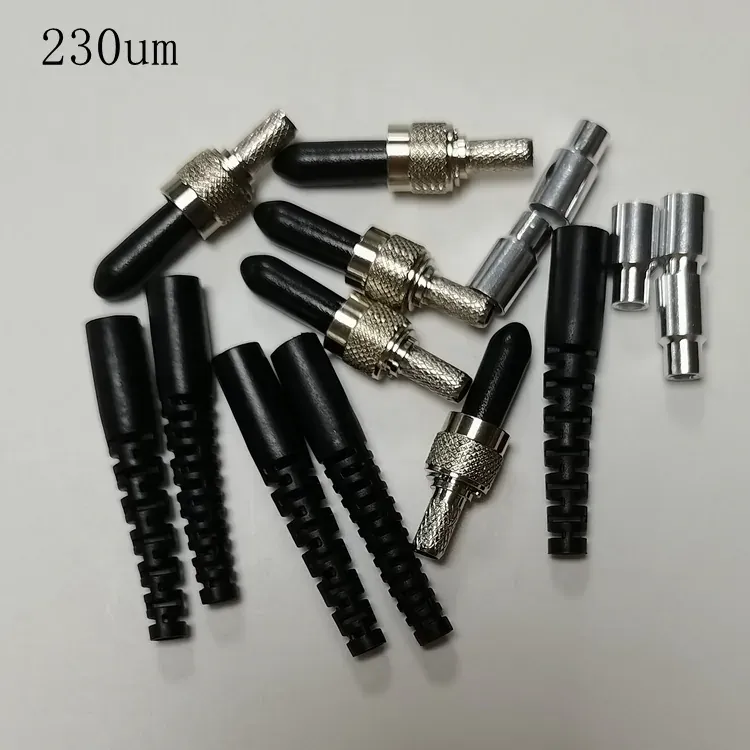

SMA905 230 um 200/230 HCS Fiber Jumper Harness
SMA905 200/230 um hard-clad silica (HCS) fiber jumper with factory connectors for high-bandwidth, EMI-immune servo and CNC optical links.

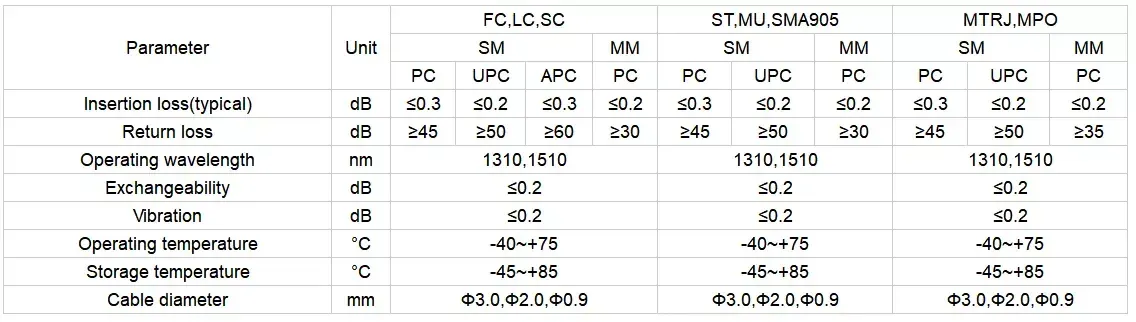

Specifications
- Type
- fiber optic connector, Terminal Connectors
- Certifaction
- ISO9001,ROHS,CE
- connector Type

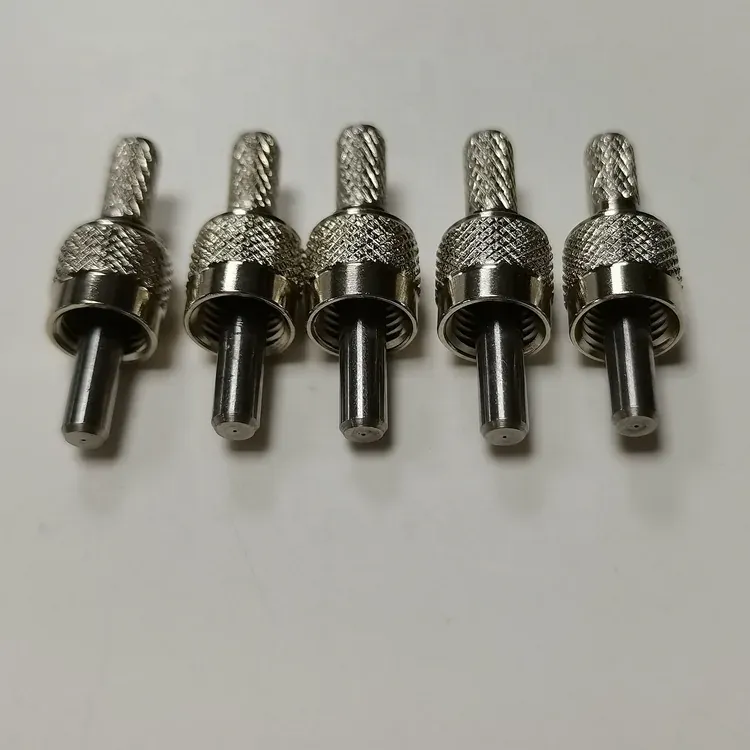

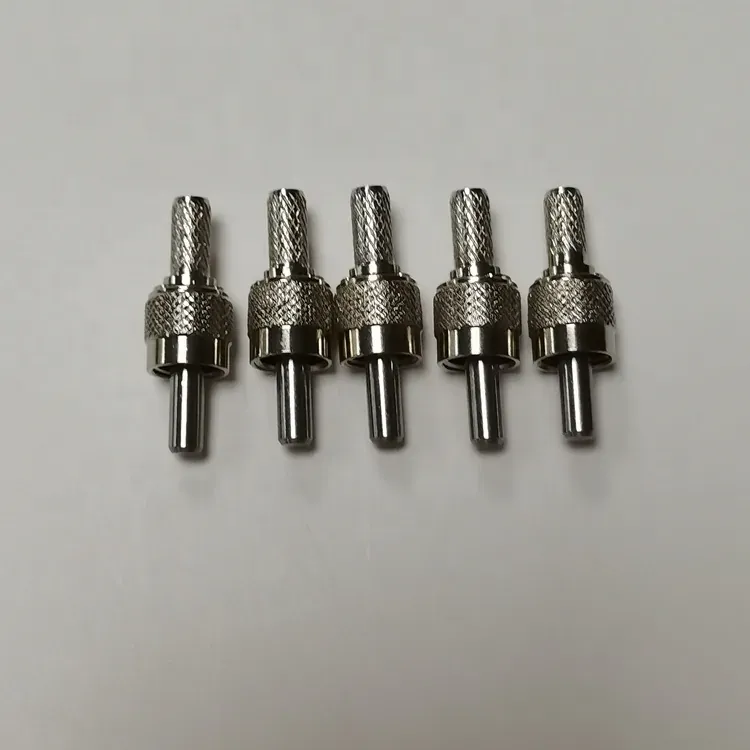

- SMA905
- Weight
- 0.02KG
- Ferrule material
- Ceramic
- Hole diameter
- HCS200/230um
SMA905 230 um 200/230 HCS Fiber Jumper Harness
The SMA905 is a JINSHANG TECH 200/230 um hard-clad silica (HCS/HPCF) fiber jumper, factory-terminated for industrial servo and control networks.
Manufactured for production use rather than as a one-off sample, the SMA905 is built to a stable fiber specification so orders can be repeated with consistent dimensions and performance.
Key Characteristics
- Fiber diameter: HCS200/230um
- Connector/interface: SMA905
- Certified to ISO9001,ROHS,CE
- 200/230 um hard-clad silica fiber for glass-like performance with POF-like handling
- Factory-terminated HCS connectors (F07/JIS where specified)
- Higher bandwidth and longer reach than 1 mm PMMA POF
- EMI-immune and galvanically isolated for servo networks
- Available in standard and custom lengths
Typical Applications
The SMA905 is commonly used for Mitsubishi/Sumitomo servo and CNC optical networks, industrial automation links needing higher bandwidth than POF, and HCS jumpers between drives, amplifiers and controllers. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: Is it compatible with Mitsubishi/Sumitomo systems? A: The listed assemblies are built around the corresponding HCS fiber and connector standards used in those systems; verify the part number against the equipment.
Q: Can length be customized? A: Standard lengths are stocked and custom lengths can be produced to the routing requirement.
Q: What connectors does it use? A: These jumpers typically use JIS F07/HPCF connectors (e.g. with Sumitomo CS-DL72 fiber); the exact interface is listed for the model.
Q: HCS vs POF? A: HCS supports longer, higher-speed links and wider temperatures; POF is lower cost and simpler for very short connections. Choose HCS where the system specifies it.
