PCF CABLE
Simplex 200/230 HCS Fiber Jumper Harness
This is a 200/230 um hard-clad silica (HCS) fiber jumper with factory connectors for high-bandwidth, EMI-immune servo and CNC optical links.
Specifications
- Type
- Fiber Optic Cable, Sumitomo
- Use
- FTTH,FTTX,FTTP
- Certifaction
- ISO9001 ,ROHS
- Fiber material
- PMMA-1.0mm
- length
- 1m, Accept customization
- Operating temperature
- -55~+85C
- Color
- Orange
- Weight
- 0.02kg
- Fiber patch cord Outer diameter
- PE
Simplex 200/230 HCS Fiber Jumper Harness
This is a JINSHANG TECH 200/230 um hard-clad silica (HCS/HPCF) fiber jumper, factory-terminated for industrial servo and control networks.
JINSHANG TECH supplies the unit as a production item; fiber diameter, jacketing, connectorization and length can be confirmed against the specification before ordering.
Key Characteristics
- Standard length: 1m, Accept customization
- Certified to ISO9001 ,ROHS
- Outer jacket: PE
- Housing/jacket color: Orange
- PMMA (polymethyl methacrylate) core for high light transmission and low-cost optical links
- Operating temperature range: -55~+85C
- Higher bandwidth and longer reach than 1 mm PMMA POF
- Factory-terminated HCS connectors (F07/JIS where specified)
Typical Applications
The unit is commonly used for Mitsubishi/Sumitomo servo and CNC optical networks, industrial automation links needing higher bandwidth than POF, and HCS jumpers between drives, amplifiers and controllers. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: What is 200/230 um HCS fiber? A: It is a hard-clad silica fiber with a 200 um glass core and 230 um cladding, offering higher bandwidth and reach than 1 mm POF while remaining relatively easy to terminate.
Q: HCS vs POF? A: HCS supports longer, higher-speed links and wider temperatures; POF is lower cost and simpler for very short connections. Choose HCS where the system specifies it.

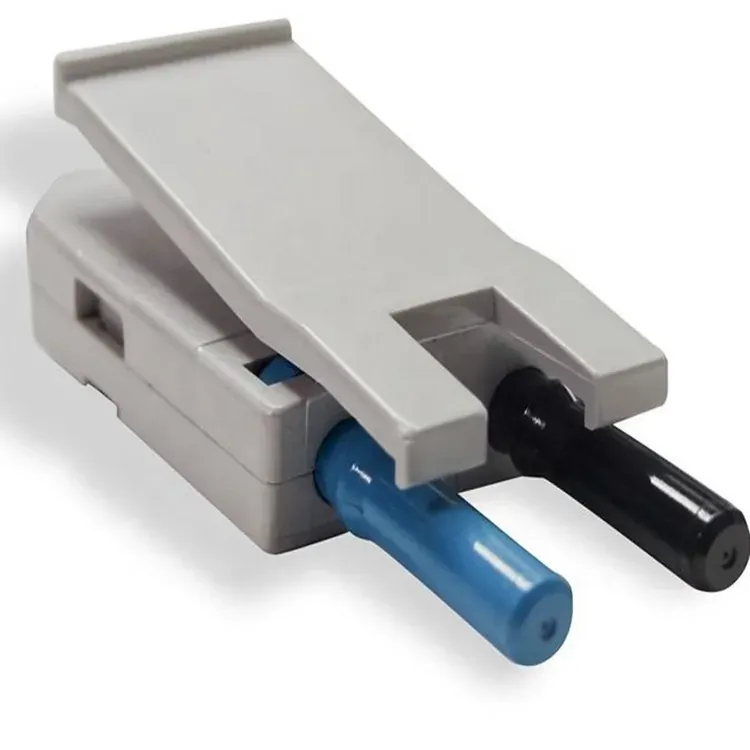

Q: What connectors does it use? A: These jumpers typically use JIS F07/HPCF connectors (e.g. with Sumitomo CS-DL72 fiber); the exact interface is listed for the model.
Q: Can length be customized? A: Standard lengths are stocked and custom lengths can be produced to the routing requirement.
