PCF CABLE
200/230 HCS Fiber Jumper Harness
This is a 200/230 um hard-clad silica (HCS) fiber jumper with factory connectors for high-bandwidth, EMI-immune servo and CNC optical links.
Specifications
- Type
- Fiber optic patch cord
- Application
- Mitsubishi PLC Servo System,Hitachi drilling machine
- Fiber type
- Patch cord
- Certification
- ISO9001,RoHS
- Specification
- costomize
- Outer Jacket Material
- 2.2mm
- Operating temperature
- -40~75Degree
- IP rating
- IP68
- Color
- Orange

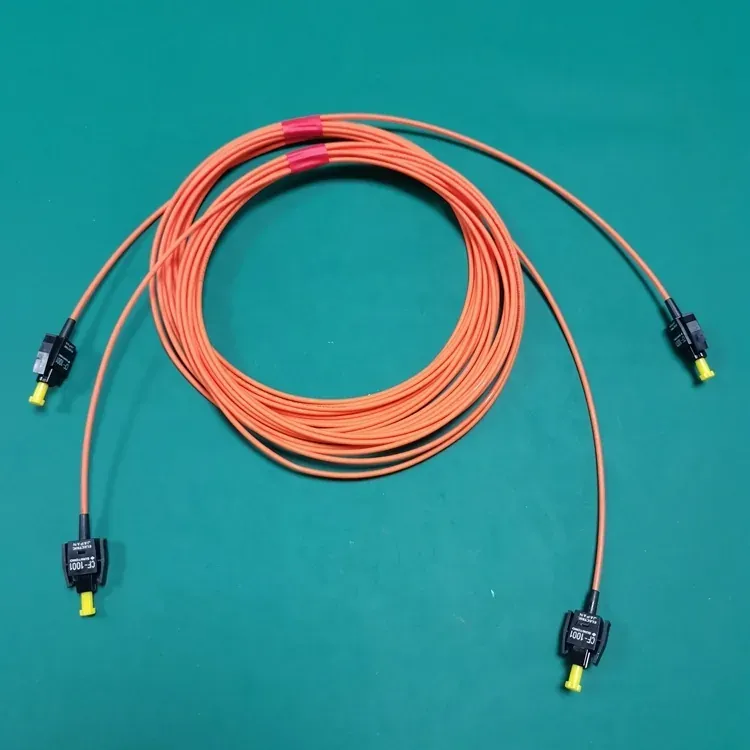

200/230 HCS Fiber Jumper Harness
This HPCF jumper from JINSHANG TECH combines glass-core bandwidth with tough, easy-to-handle cladding in a factory-terminated harness.
Because the optical path is non-conductive, the unit provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Certified to ISO9001,RoHS
- Outer jacket: 2.2mm
- Housing/jacket color: Orange
- Operating temperature range: -40~75Degree
- IP68 ingress protection for damp or wash-down environments
- Available in standard and custom lengths
- Factory-terminated HCS connectors (F07/JIS where specified)
Typical Applications
The unit is commonly used for Mitsubishi/Sumitomo servo and CNC optical networks, industrial automation links needing higher bandwidth than POF, and HCS jumpers between drives, amplifiers and controllers. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions

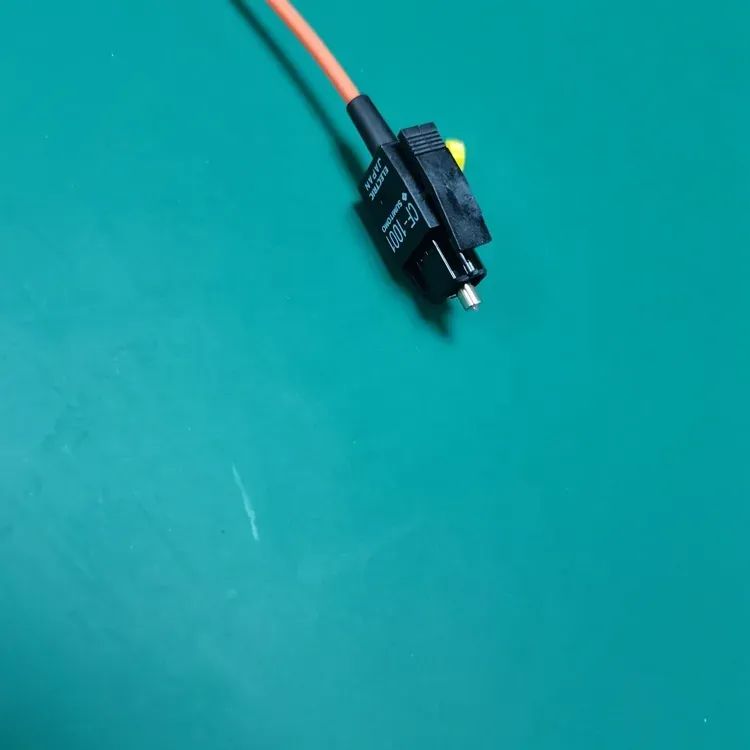

Q: What connectors does it use? A: These jumpers typically use JIS F07/HPCF connectors (e.g. with Sumitomo CS-DL72 fiber); the exact interface is listed for the model.
