PCF CABLE

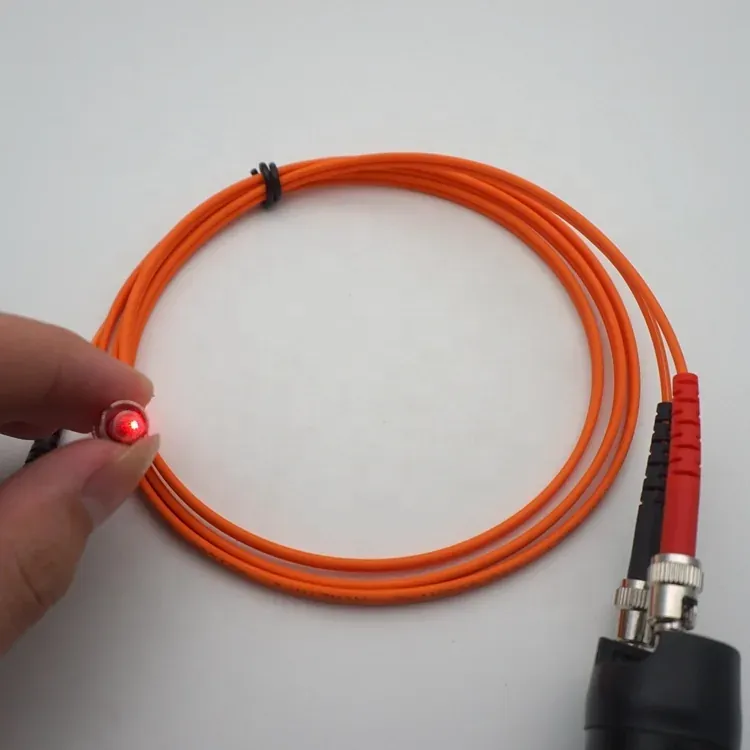

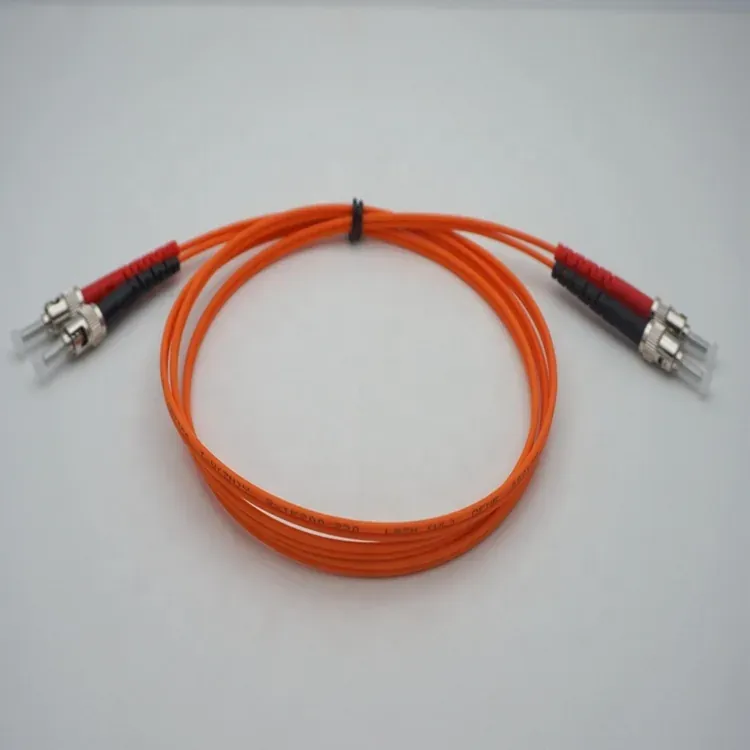

Duplex Wind Turbine 200/230 HCS Fiber Jumper Harness
This is a 200/230 um hard-clad silica (HCS) fiber jumper with factory connectors for high-bandwidth, EMI-immune servo and CNC optical links.
Duplex Wind Turbine 200/230 HCS Fiber Jumper Harness
This is a JINSHANG TECH 200/230 um hard-clad silica (HCS/HPCF) fiber jumper, factory-terminated for industrial servo and control networks.
Because the optical path is non-conductive, the unit provides electrical isolation between connected equipment and can be routed past motors, drives and power wiring without picking up noise.
Key Characteristics
- Available in standard and custom lengths
- Factory-terminated HCS connectors (F07/JIS where specified)
Typical Applications
The unit is commonly used for Mitsubishi/Sumitomo servo and CNC optical networks, industrial automation links needing higher bandwidth than POF, and HCS jumpers between drives, amplifiers and controllers. The result is a reliable, repeatable build that tolerates the routing, vibration and repeated handling typical of production installations.
Frequently Asked Questions
Q: HCS vs POF? A: HCS supports longer, higher-speed links and wider temperatures; POF is lower cost and simpler for very short connections. Choose HCS where the system specifies it.
Q: Is it compatible with Mitsubishi/Sumitomo systems? A: The listed assemblies are built around the corresponding HCS fiber and connector standards used in those systems; verify the part number against the equipment.
Q: What connectors does it use? A: These jumpers typically use JIS F07/HPCF connectors (e.g. with Sumitomo CS-DL72 fiber); the exact interface is listed for the model.
Q: What is 200/230 um HCS fiber? A: It is a hard-clad silica fiber with a 200 um glass core and 230 um cladding, offering higher bandwidth and reach than 1 mm POF while remaining relatively easy to terminate.
